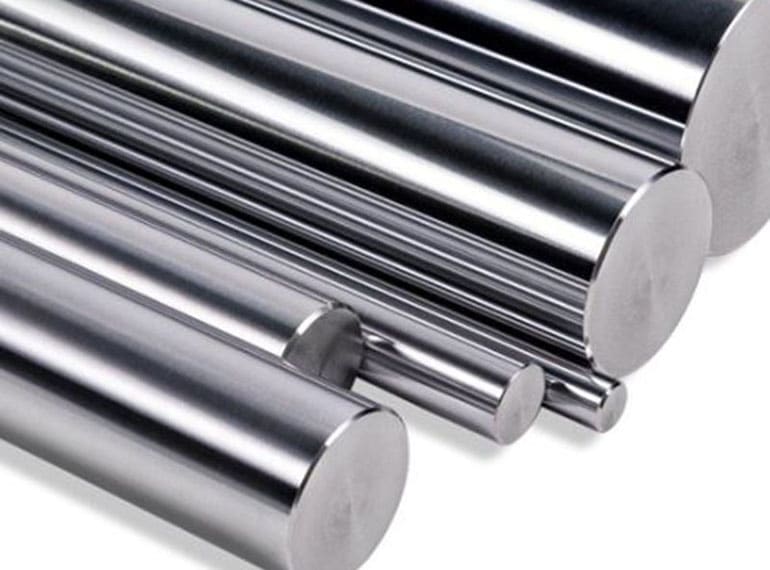

Name: Induction Hardened Chrome Plated Rod
Place of Origin: China
Brand Name: Datong
We are professional manufacturer of hard chrome rods. We have been supplying and exporting chrome rod for almost 20 years.And we stock a wide range of hard chrome rod and Induction Hardened Chrome Plated Rod for Hydraulic Cylinder.
If you are interested in our Induction hardened chrome plated rod welcome to contact us via firstname.lastname@example.org
Material: CK45, SAE1045, 4140, 4340, JIS45C, 40Cr, 20MnV6, 42CrMo, SS431, SS430, Stainless Steel 304/316/2205, etc.
Diameter: Φ 6-800mm
Length: max 13m
Chrome layer: 20 micron (min)
Straightness: <= 0.2/1000
Roughness: Ra <= 0.2u
Hardness of the chrome layer:850 HV (min) – 1150 HV
Diameter tolerance: ISO f7/h8/g6
Protection: Anti-rust oil outside with hard board sleeve protection.
Packing: Wooden case
Hard Chrome Piston Rod ( HRC 15-20)
Quenched & Tempered (Q+T) Rod (HRC 28-32)

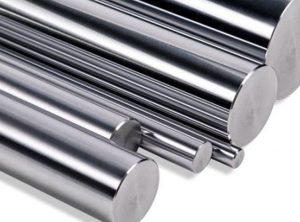

Induction Hardened Rod (HRC 55-62)
Q+T Induction Hardened Rod (HRC 60-65)
We can supply part with follow test reports
1) Chemical composition report
2) Key dimension checking record report
3) Full dimension report
4) Metallographic structure report
5) Tensile strength report
6) Third-party test report(If need)
WE ALSO PRODUCE:

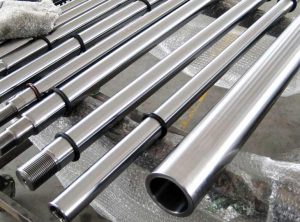

Hollow Chrome Bar/ Hard Chrome Shaft
Why Choose US
Customer built is the first principle for Anbao Hydraulic .
1.We are a manufacturer of making hydraulic products include hydraulic cylinder piston rods for more than 20 years
2. Quality control for Anbao piston rods–our defective products rate is 0.01%
3.Economically priced, exquisitely made, experienced & responsible QC that you can rely on
4.Adequate supply capacity,punctual delivery time
5.Best after sales service are provided

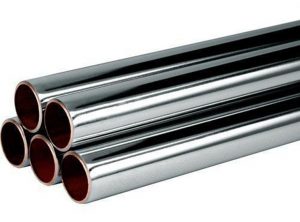

The various types of chrome rods/bars we have in stocks are standard hard chrome rods and induction hardened chromed rods . Other types of rods such as nickel chrome rod and 42CrMo4 chrome rods are also available on request. honed tube and chrome plated tube are also supplied by us.
